Vertical Double-door Evaporation PVD Vacuum Coating Machine

Dual-chamber Design
Full Automatic Control
Energy-saving Vacuum Unit

Introduction

Vertical double-door alternate operation structure, loading/unloading and coating synchronously, compatible with magnetron sputtering, resistance evaporation, protective film coating, multi-purpose in one machine

Core Technology

■ Vertical double-door structure, easy clamping and target replacement

■ Revolution-rotation workpiece holder, uniform coating without uneven colors

■ One-key start, fully automatic operation, reduce labor costs

■ Optional online film thickness monitoring, controllable film quality

Core Advantages

■ Fast double-door switching, 50% increase in production efficiency, double capacity

■ Short cycle time, high production capacity , 6 to 8mins one cycle.

■ High turntable load capacity, suitable for large-size heavy workpieces

■ Full closed-loop quality control, 24-hour continuous stable operation

Basic Configuration

Model	CCZK-1000EL	CCZK-1200EL	CCZK-1400EL	CCZK-1800EL	CCZK-2000EL
Chamber Size	D1000mm*H1200mm	D1200mm*H1500mm	D1400mm*H1600mm	D1800mm*H2000mm	D2000mm*H2200mm
Power Load	43KW	50KW	63KW	93KW	105KW
Landing Area	L3100mmW4800mmH2700mm	L3600mmW5060mmH2700mm	L4200mmW6550mmH3100mm	L7200mmW8100mmH3300mm	L7200mmW8500mmH3300mm
Coating Colors	Golden, Silver, Black, Color，Different Decorative colors
Vacuum System	Diffusion pump/Turbo molecular pump +Booster pump + Rotary vane pump+Holding pump(cryogenic pump and polycold is optional)
Ultimate Vacuum	5* 10^-4Pa (Clean and empty chamber)
Rotation System	Planetary rotation and revolution 6/8/10/12/16 axis

Coating System	Heavy-Cross^® Evaporation Source


Power Supply	Evaporation power /Plasma power
Operation System	Full automatic(IPC/PLC)+Remotely operation+Alarm system (OPC-UA Link protocol available)

Remark	The specific configuration size can be designed according to customer's coating product requirements

Application

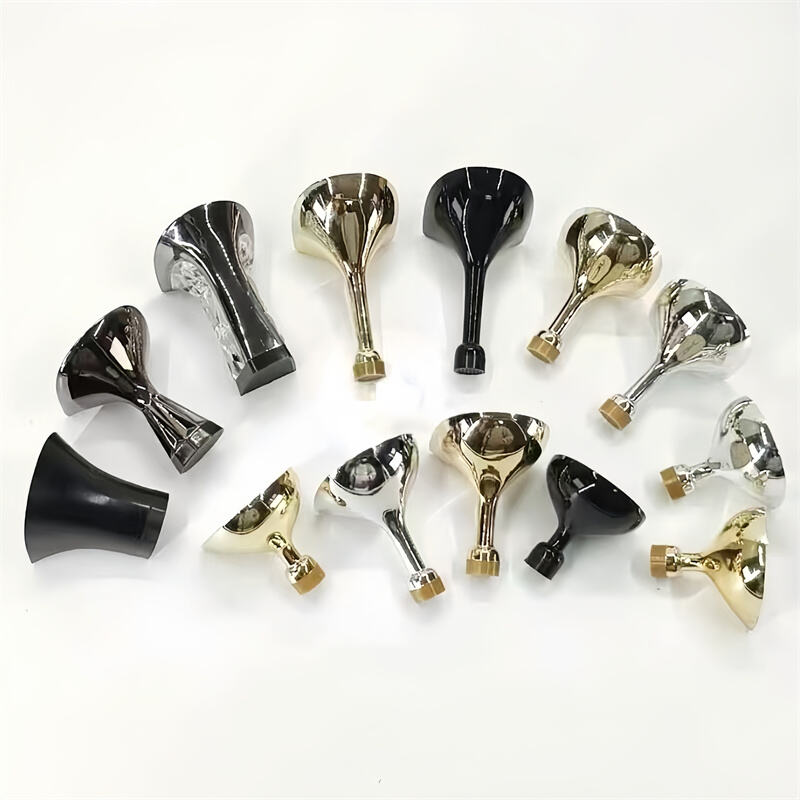

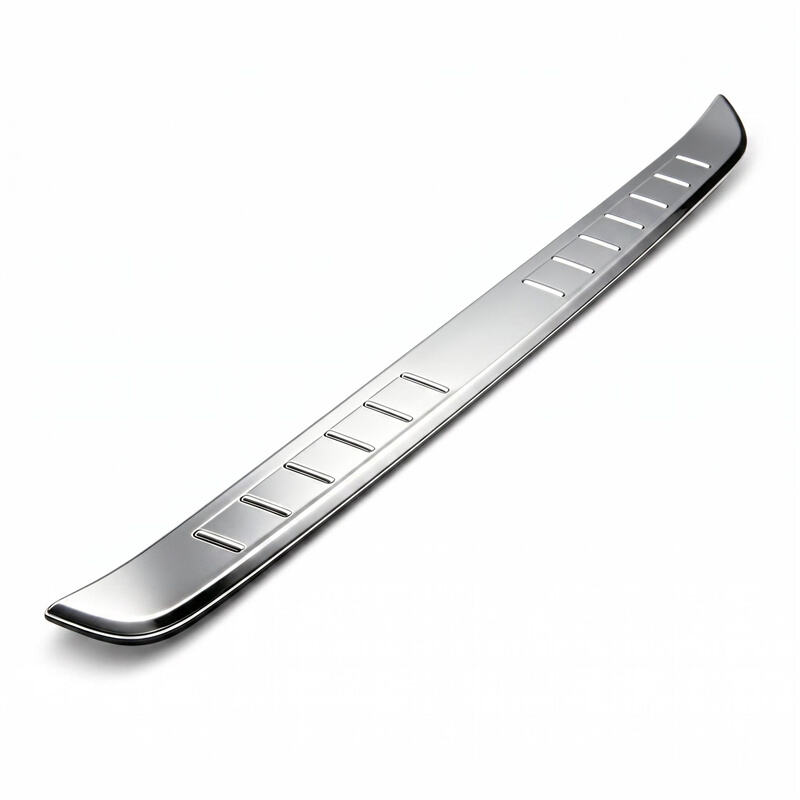

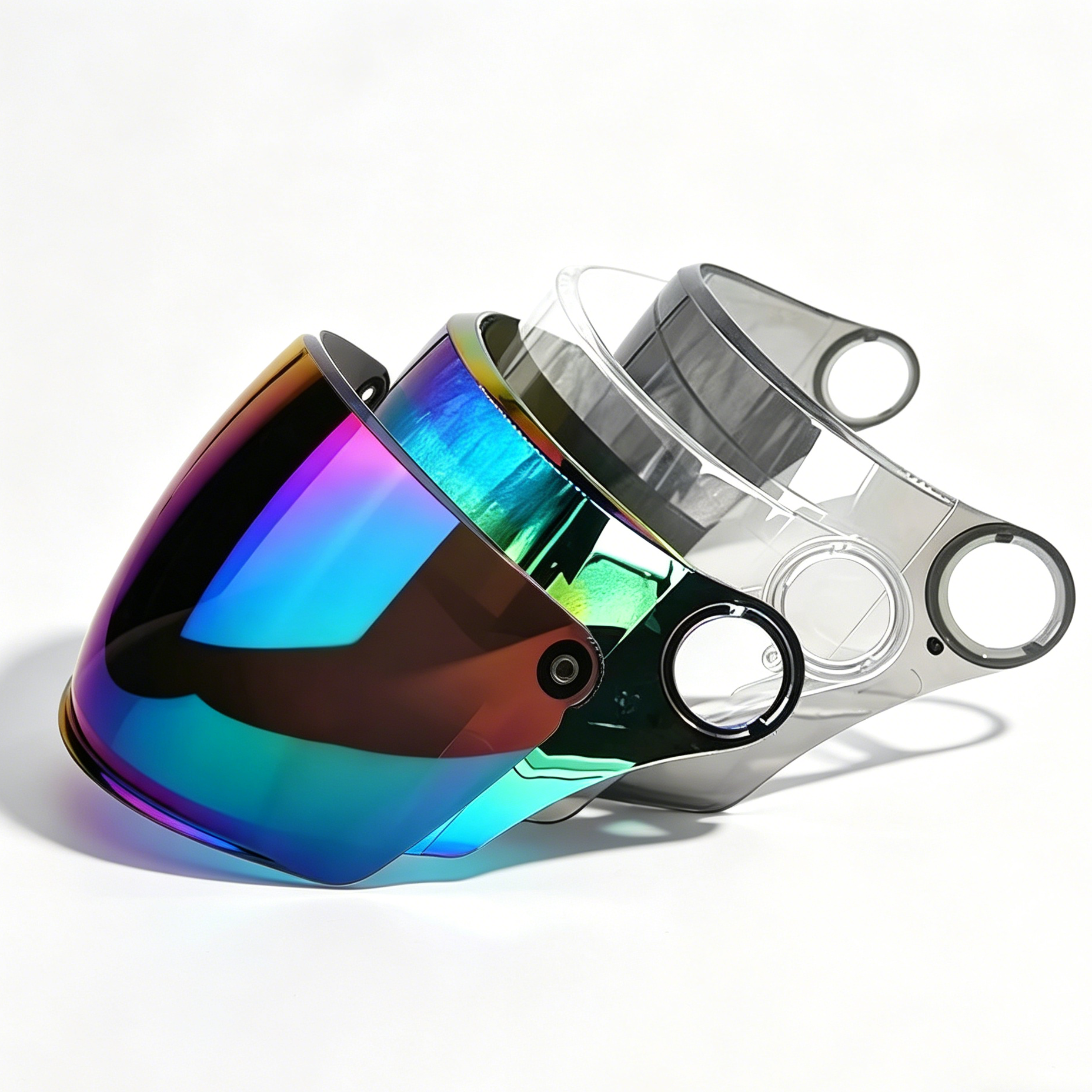

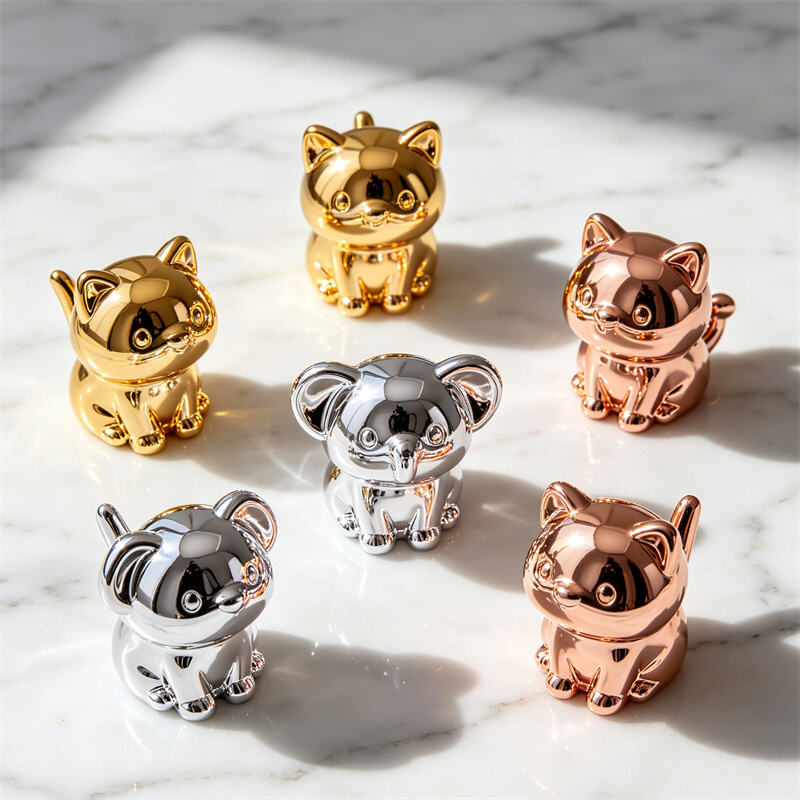

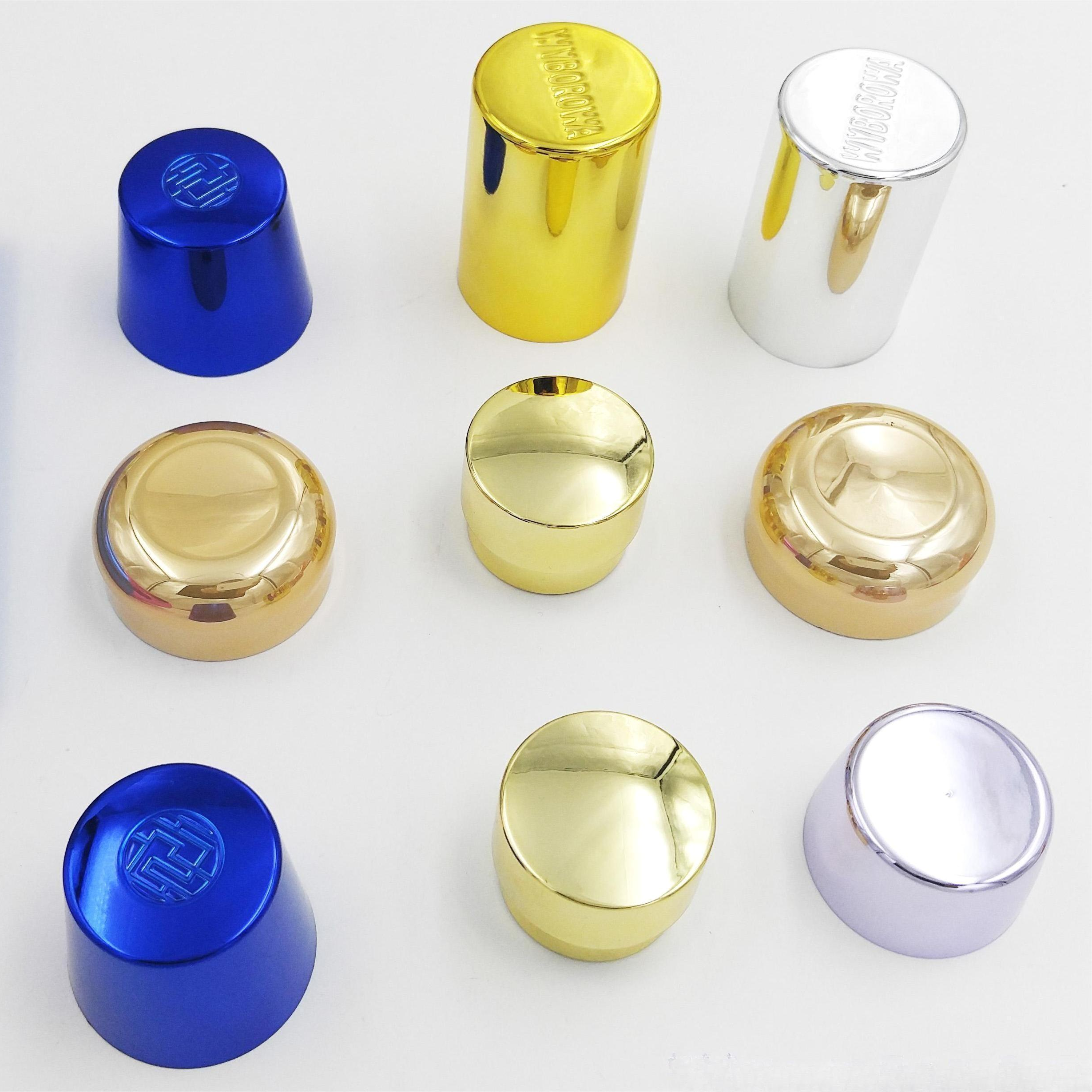

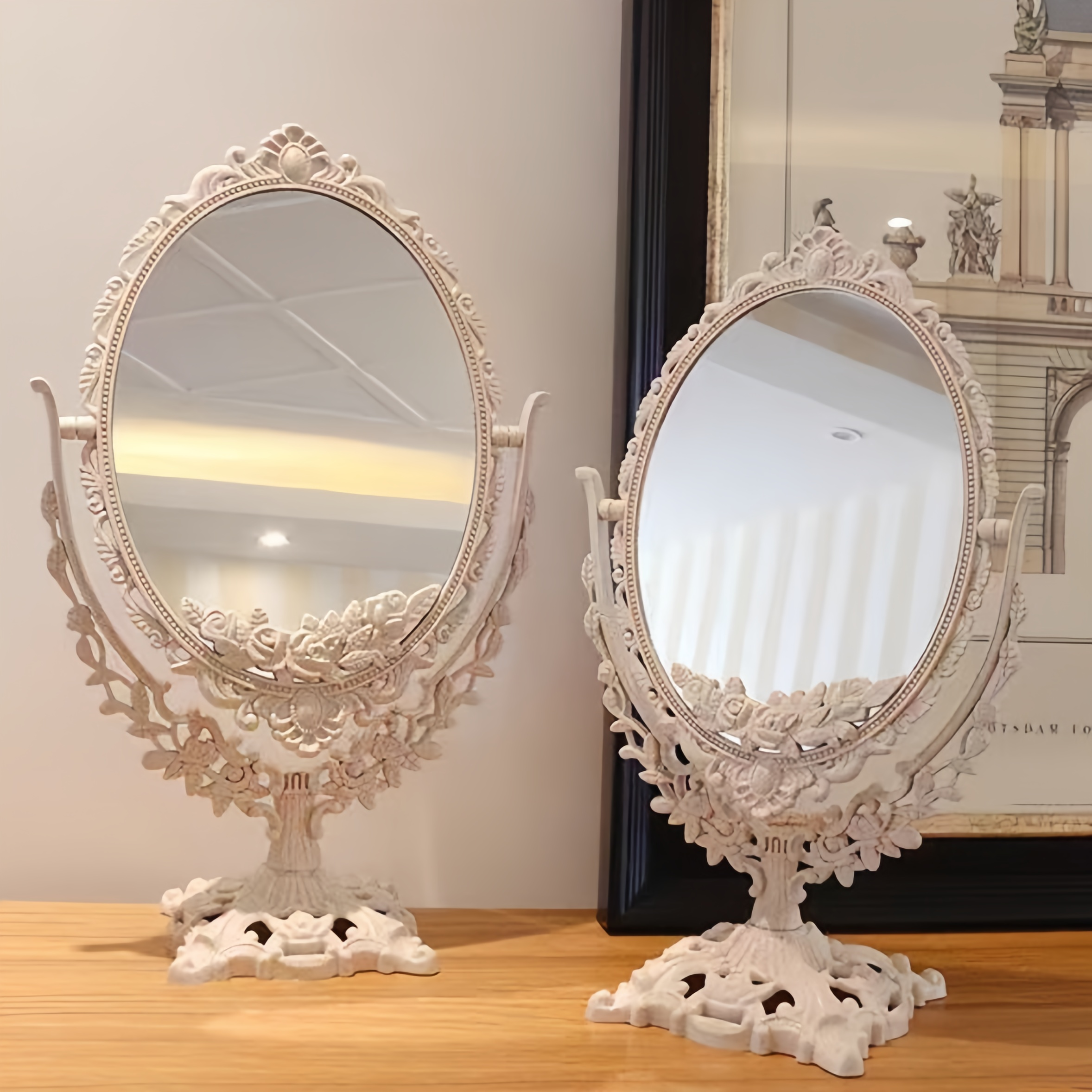

Widely used in ABS plastics, acrylic rhinestones, resin rhinestones, shoe materials and accessories, cosmetic packaging, craft gifts, toys and ornaments, it can present a rich variety of colors and form a uniform and dense film.
