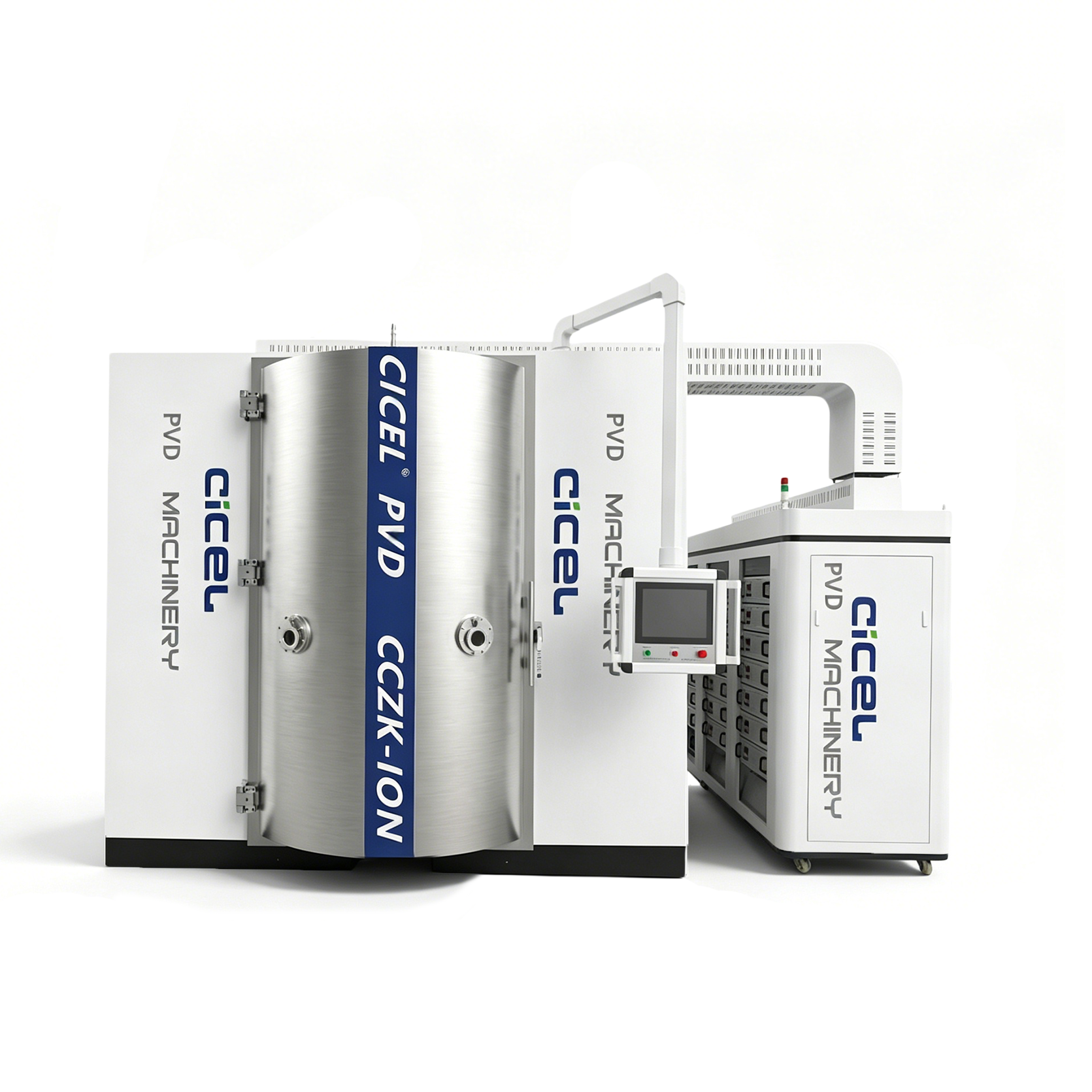

Multi Arc Ion PVD Vacuum Coating Machine

Arc Source Array Arrangement
Dual Dynamic Magnetic Cathode
Multi-layer Overflow Reaction Gas Pipe

Introduction

Relies on high ionization rate multi-arc ion plating technology, high metal ionization rate, fast deposition speed, extremely strong film adhesion, high versatility, suitable for various decorative and functional coatings

Core Technology

■ Optional multiple arc sources, customizable coating process

■ All-stainless steel vacuum chamber, corrosion-resistant and easy to clean

■ Pulse bias system, eliminates charge accumulation and avoids workpiece ignition

■ Manual/automatic dual mode, flexible operation

Core Advantages

■ High metal ionization rate, fast film formation, high mass production efficiency

■ Excellent wrapping performance, uniform coating for deep-hole and special-shaped workpieces

■ Strong arc source stability, low equipment failure rate

■ Compact structure, low maintenance cost, suitable for mass production and R&D

Basic Configuration

Model	CCZK-700-ION	CCZK-1012-ION	CCZK-1416-ION	CCZK-1618-ION	CCZK-1820-ION
Chamber Size	D700mm*H700mm	D1000mm*H1200mm	D1400mm*H1600mm	D1600mm*H1800mm	D1800mm*H2000mm
Power Load	55KW	95KW	110KW	130KW	150KW
Load in Area	L4460mmW4340mmH2290mm	L5200mmW4800mmH2700mm	L6155mmW5050mmH3210mm	L6500mmW4750mmH3200mm	L7800mmW5200mmH2600mm
Coating Colors	Titanium Gold, Rose Gold, Gun Black, Chrome White, Sapphire Blue, Bronze，etc.
Coating Films	Simple metal films (Al/Ti/Cr), metal compound films (TiN/CrN/ZrN); Film hardness 800~3000HV, excellent adhesion
Vacuum System	Diffusion pump/Turbo molecular pump +Booster pump + Rotary vane pump+Holding pump(cryogenic pump and polycold is optional)
Ultimate Vacuum	5* 10^-4Pa (Clean and empty chamber)
Rotation System	Planetary rotation and revolution 6/8/10/12/16 axis
Rotation System	Planetary rotation and revolution 6/8/10/12/16 axis
Coating System	DMF^®-ARC Cathode IET^® Etching Source Distributed MFC Gas Path


Power Supply	Pulsed ARC power / Pulsed bias power /Plasma power
Operation System	Full automatic(IPC/PLC)+Remotely operation+Alarm system (OPC-UA Link protocol available)
Remark	The specific configuration size can be designed according to customer's coating product requirements

Application

Widely used in stainless steel products, hardware accessories, ceramic ornaments, glass products, environmentally friendly electroplating alternatives, bag and clothing hardware, and kitchen and bathroom decorative parts, it can present a rich variety of colors and form a uniform and dense film.
