Large Scale Decorative PVD Vacuum Coating Machine

High-efficiency Vacuum Unit
Large-volume Vertical Chamber
Dual Dynamic Magnetic Cathode

Introduction

Vertical large scale chamber structure, multi-arc ion + magnetron sputtering composite process, can coat uniform, bright and weather-resistant color decorative films, replacing traditional electroplating.

Core Technology

■ Multi-arc + magnetron sputtering composite process, full color and strong adhesion of film

■ Wear-resistant, scratch-resistant, sweat corrosion-resistant, long service life

■ Romoveable rotation trolley, loading/unloading and coating synchronously, high efficiency

■ Remote monitoring, real-time controllable equipment operation status

Core Advantages

■ Richful coating color, high coating color uniformity, 100% batch consistency, Pass high grade test of salt spray resistance

■ Revolution-rotation workpiece holder, 360° dead-angle-free coating

■ Environmentally friendly, no heavy metal emissions, compliant with EU standards

■ One-key fully automatic operation, short production cycle and high capacity

Basic Configuration

Model	CCZK-2030-ION	CCZK-2335-ION	CCZK-2545-ION	CCZK-2565-ION
Chamber Size	D2000mm*H3000mm	D2300mm*H3500mm	D2500mm*H4500mm	D2500mm*H6500mm
Power Load	243KW	270KW	290KW	536KW
Landing Area	L8000mmW13000mmH4000mm	L10000mmW11500mmH4600mm	L11000mmW12500mmH5600mm	L11000mmW12500mmH7800mm
Coating Colors	Titanium Gold, Rose Gold, Gun Black, Champagne Gold, Sapphire Blue, Coffee, Rainbow, Bright Chrome,etc.
Coating Films	TiN, TiCN, TiC, AlTiN, CrN, ZrN, CrC; Decorative film hardness 600~1200HV, salt spray resistance ≥96h
Vacuum System	Diffusion pump/Turbo molecular pump +Booster pump + Rotary vane pump+Holding pump(cryogenic pump and polycold is optional)
Ultimate Vacuum	5* 10^-4Pa (Clean and empty chamber)
Rotation System	Planetary rotation and revolution ,Removeable trolley 6/8/10/12/16 axis

Coating System	DMF^®-ARC Cathode IET^® Etching Source Distributed MFC Gas Path


Power Supply	Pulsed ARC power / Pulsed Bias power /Plasma power
Operation System	Full automatic(IPC/PLC)+Remotely operation+Alarm system (OPC-UA Link protocol available)

Remark	The specific configuration size can be designed according to customer's coating product requirements

Application

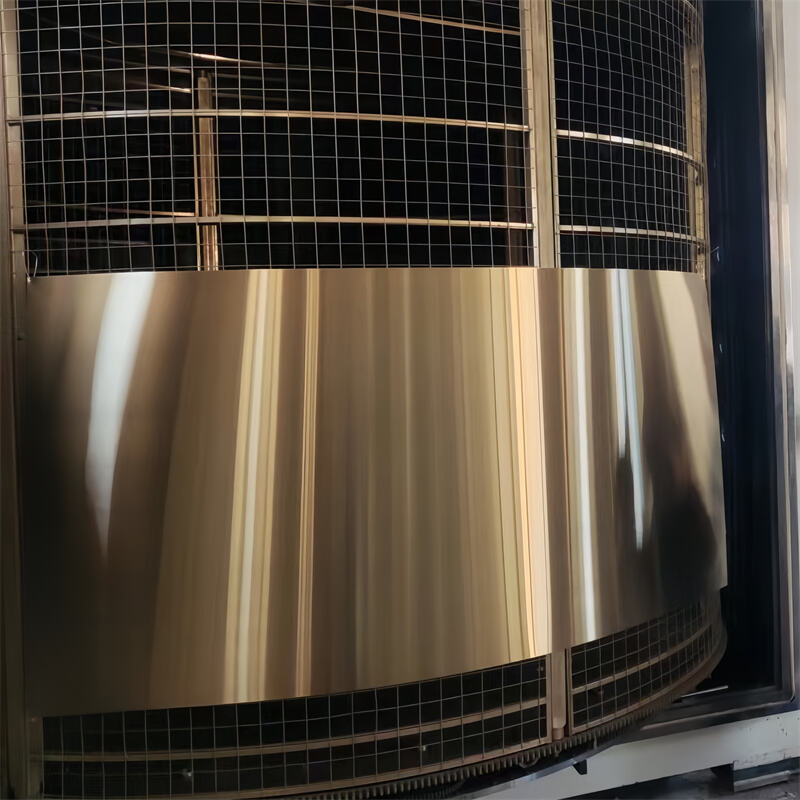

Widely used in bathroom hardware, watches and jewelry, stainless steel furniture, stainless steel sheets, automotive interiors, home appliance decorative parts, and ceramic and glass ornaments, it can present rich colors and form a uniform film layer.
